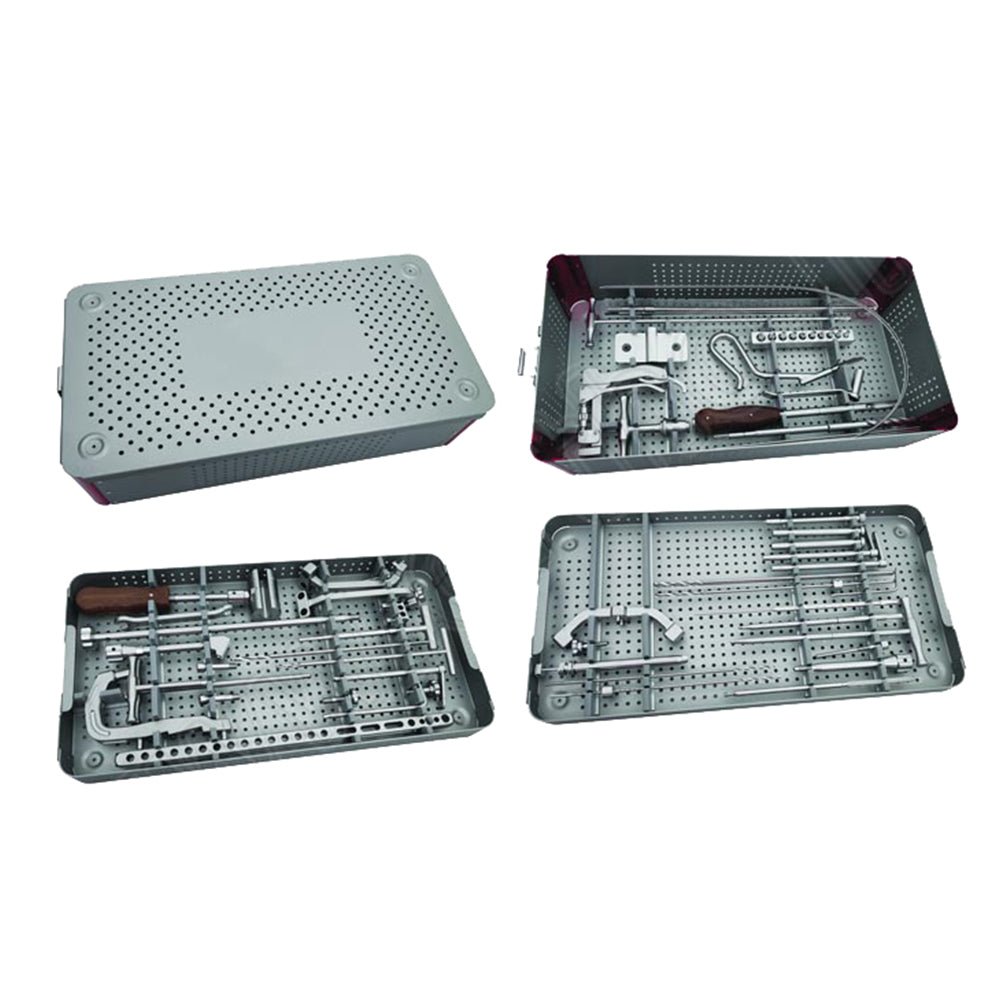

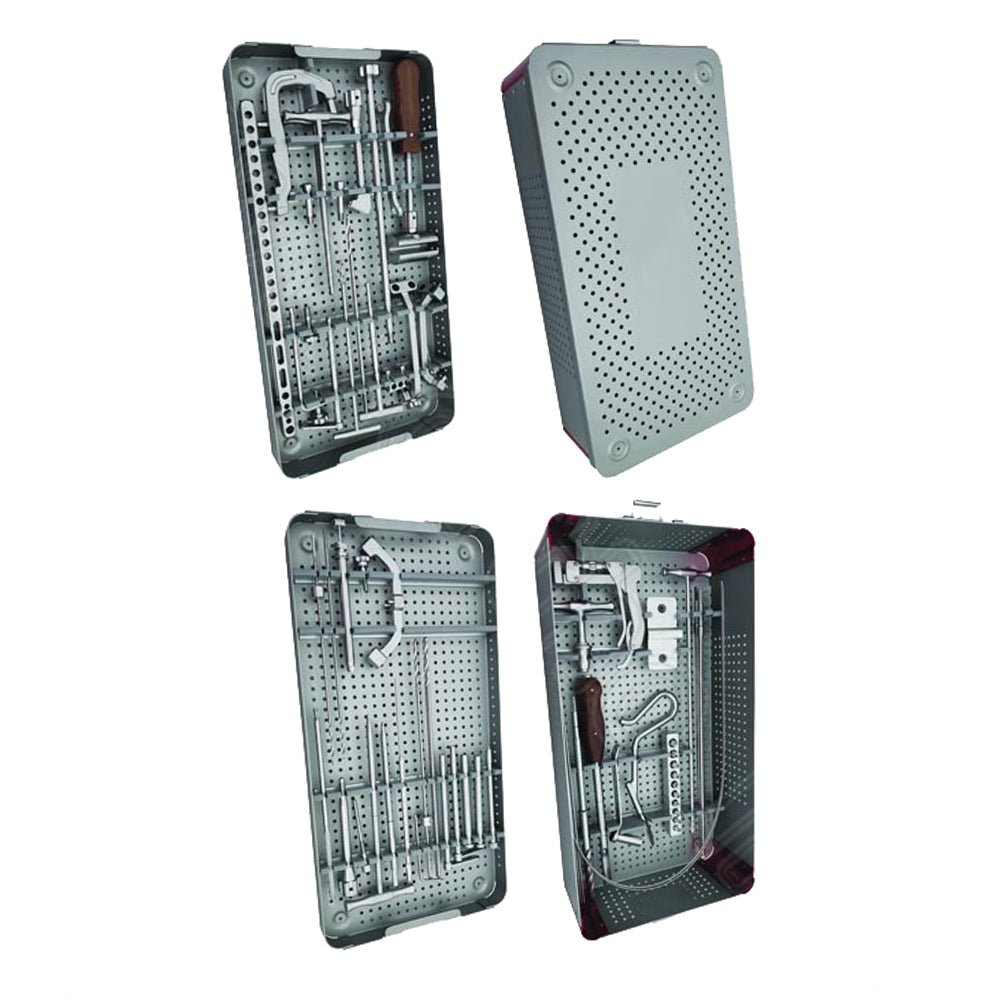

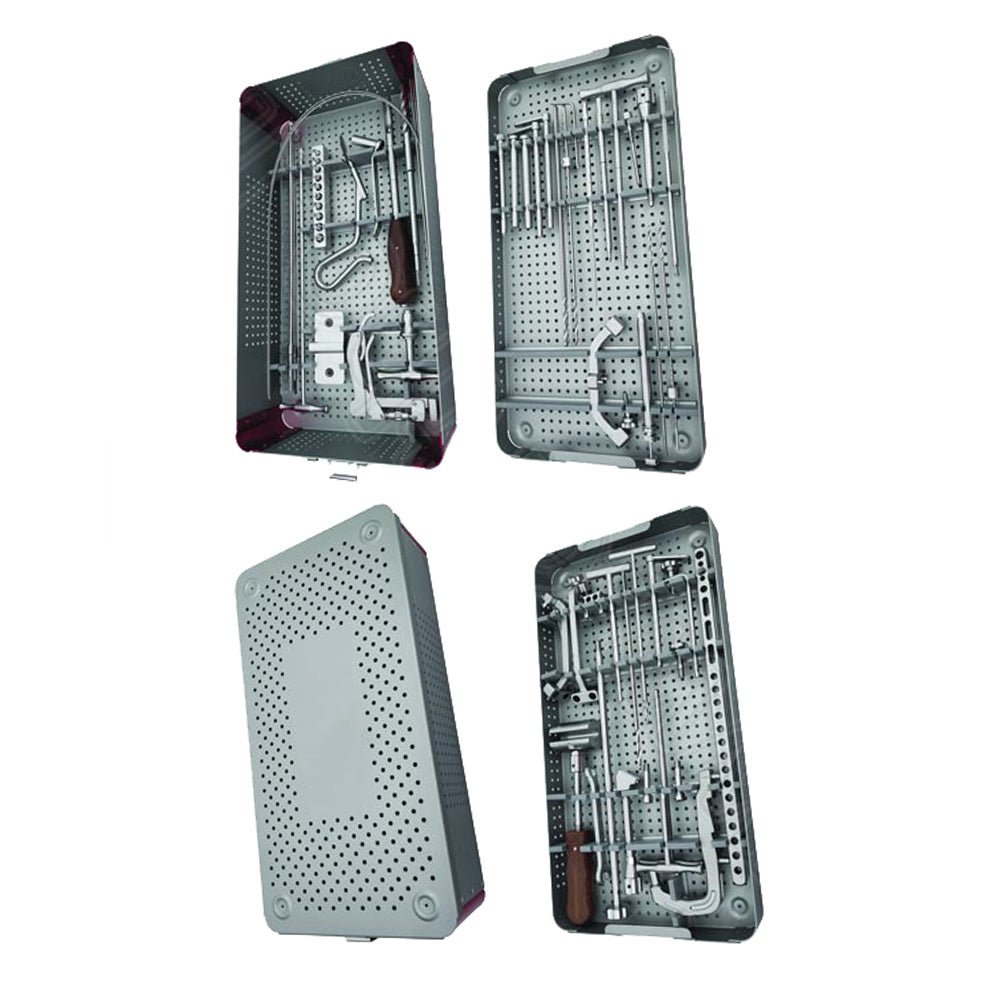

Instruments Set For Perfect Tibial Nails

PS-075A.01 - Radiographic Ruler for Perfect Tibial Nail

1

PS-075A.02 - Protection Sleeve 14x12mm

1

PS-075A.03 - Cannulated Cutter for Perfect Tibial Nail Ø 12mm

1

PS-075A.04 - Awl 12mm – cannulated

1

PS-075A.05 - Drill Bit Ø 12mm – cannulated

1

PS-075A.06 - Guide Wire 3.2 mm x 300mm

3

PS-075A.07 - Insertion Handle for Perfect Tibial Nail

1

PS-075A.08 - Connecting Screw, cannulated short for Perfect Tibial Nail

1

PS-075A.09 - Compression Screw for Perfect Tibial Nail

1

PS-075A.10 - T.Handle for Connecting Screw 6.5mm

1

PS-075A.11 - Multiaxial T.Handle for Connecting Screw 6.5mm

1

PS-075A.12 - Connector for Insertion Handle, Length 141mm

2

PS-075A.13 - Connecting Part for Connector

1

PS-075A.14 - Hammer Guide Rod

1

PS-075A.15 - Distal Jig Guide

1

PS-075A.16 - Distal Allignment Device (T-Type)

1

PS-075A.17 - Positioning Block for Distal Allignment Device

1

PS-075A.18 - Distal Aiming Arm

1

PS-075A.19 - Connecting Part of Distal Aiming Arm

1

PS-075A.20 - Hexagonal Screw Driver Shaft 3.5 Tip, Long

1

PS-075A.21 - Proximal Aiming Arm

1

PS-075A.22 - Proximal Aiming Arm-Angular

1

PS-075A.23 - Drill Bit 3.2 x 250 Calibrated

2

PS-075A.39 - Drill Bit Stopper 3.2mm

1

PS-075A.24 - Drill Bit 4 x 300mm

3

PS-075A.38 - Drill Bit Stopper 4mm

1

PS-075A.25 - T-Type Drill Bit Ø5.2mm for Distal Allignment Device

1

PS-075A.26 - Drill Bit 5.2 x 250mm for Distal Allignment Device

1

PS-075A.27 - Protection Sleeve 8.1 ID x 10 OD

2

PS-075A.28 - Drill Sleeve 8.0 x 4mm

2

PS-075A.29 - Drill Sleeve 8.0 x 5.2mm

1

PS-075A.30 - Protection Sleeve with 3.2 Drill Sleeve & Trocar Pin (Set of 3)

1 Set

PS-075A.31 - Depth Gauge

1

PS-075A.32 - Hexagonal Screw Driver 3.5mm Tip

1

PS-075A.33 - Soft Tissue Separator

1

PS-075A.34 - Reaming Rod (with Ball Tip) 2.5 x 3.9 x 1000 mm

2

PS-075A.35 - Fracture Allignment Device (T-Type)

1

PS-075A.36 - L Key 5mm

1

PS-075A.37 - L Key 3mm

1

PS-075A.40 - Skin Protecter (Small)

1

PS-075A.41 - Locking Bolt (Flower Type) for Proximal Jig – 6mm

2

PS-075A.42 - Locking Bolt (Flower Type) for Distal Jig – 8mm

2

PS-075A.43 - Pin Holder

1

PS-075A.44 - Hexagonal Screw Holder 3.5mm

1

PS-075A.45 - T-handle -Quick Coupling

1

PS-075A.46 - Pin Wrench

1

PS-075A.47 - Combination Wrench 11mm

1

PS-075A.48 - Sliding Hammer

1

PS-075A.49 - Nail Extractor

1

PS-075A.50 - Reamer Shaft

2

PS-075A-7.5 - Reamer Head Ø 7.5 mm

1

PS-075A-8.0 - Reamer Head Ø 8.0 mm

1

PS-075A-8.5 - Reamer Head Ø 8.5 mm

1

PS-075A-9.0 - Reamer Head Ø 9.0 mm

1

PS-075A-9.5 - Reamer Head Ø 9.5 mm

1

PS-075A-10.0 - Reamer Head Ø 10 mm

1

PS-075A-10.5 - Reamer Head Ø 10.5 mm

1

PS-075A-11.0 - Reamer Head Ø 11 mm

1

PS-075A-11.5 - Reamer Head Ø 11.5 mm

1

PS-075A-12.0 - Reamer Head Ø 12 mm

1

PS-075A.51 - Medullary Tube

1

PS-075A.000 – Empty Container

1

Distal Jig Assembly For Perfect Tibial Nails

Proximal Locking



Proximal Locking



Distal Locking
